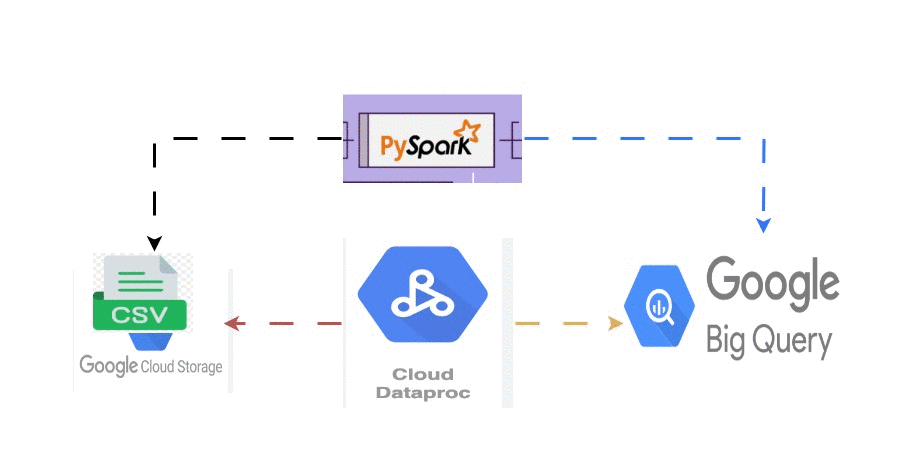

Google BigQuery Architecture: A Comprehensive Exploration
Google BigQuery is a cloud-native, enterprise-grade data warehouse known for its scalability, speed, and fully-managed infrastructure. Originally introduced in 2010, BigQuery has undergone numerous improvements, evolving into a powerful tool for running interactive, ad-hoc queries on datasets of petabyte scale. Its seamless integration with various Google Cloud Platform (GCP) services and third-party tools has made it an essential component for organizations managing vast amounts of data.
BigQuery operates as a serverless data warehouse, meaning users don’t need to manage the underlying infrastructure. With its simple pay-as-you-go model — charging $5 for every terabyte of data processed — it’s designed to handle large-scale queries efficiently. However, understanding its underlying architecture can greatly benefit users aiming to optimize performance, control costs, and implement best practices in query execution and storage.
Key Components of BigQuery Architecture
BigQuery’s architecture is built on Google’s internal technologies like Dremel, Borg, Colossus, Capacitor, and Jupiter, each playing a specific role in the performance and scalability of the platform. In the following Figure-1, A high-level architecture for BigQuery service is shown. By incorporating columnar storage and tree architecture of Dremel, BigQuery offers unprecedented performance.
1. Separation of Storage and Compute
At the core of BigQuery’s architecture is the principle of separating storage and compute resources, allowing both to scale independently. Data is stored in the Colossus distributed file system, while compute tasks are handled by Borg, Google’s cluster management system. This separation ensures that BigQuery can elastically scale based on the requirements of the job, making it both cost-effective and highly flexible.
BigQuery clients, whether through the web UI, command-line interface (CLI), or APIs, interact with Dremel, the query execution engine. Dremel, in turn, runs across nodes that are provisioned by Borg, allowing BigQuery to process massive queries simultaneously on thousands of machines.
2. Columnar Storage Format with Capacitor
BigQuery uses a proprietary columnar storage format called Capacitor, which replaced its earlier format, ColumnIO, in 2016. In Capacitor, each column of a table is stored separately, which improves both compression and query speed. By operating directly on compressed data, Capacitor reduces the amount of disk I/O required, enabling fast data scans even on very large datasets.
Data is ingested into BigQuery via two main methods: batch loading and streaming. During ingestion, data is encoded into Capacitor format, where each column is processed independently. This format allows for high compression rates and efficient retrieval during query execution.
Capacitor, in conjunction with Colossus, enables BigQuery to split datasets into multiple partitions for parallel processing. This ability to shard data means that BigQuery can handle terabytes of data per second, leveraging Google’s advanced network infrastructure.
3. Google’s Colossus File System
Colossus is the backbone of BigQuery’s data storage layer, acting as Google’s distributed file system. It is the successor to the Google File System (GFS) and offers advanced features like client-driven replication and distributed management. Colossus manages replication, recovery, and load balancing across Google’s global data centers, ensuring high availability and fault tolerance.
When data is ingested into BigQuery, it is written to Colossus in the Capacitor format, and the system decides on an initial sharding strategy. This strategy can evolve based on the access and query patterns, allowing BigQuery to optimize read and write operations over time. Colossus also provides geo-replication, ensuring that data is redundantly stored across multiple data centers for durability.
4. External vs. Native Storage
BigQuery supports querying not only data stored natively in BigQuery tables but also external data sources. Federated queries allow users to run SQL queries on data residing in external systems like Google Cloud Storage, Google Drive, and Google Bigtable, without importing it into BigQuery.
However, it’s important to note that queries against external sources are generally slower than those executed on native BigQuery tables, as the system has to load data into the Dremel engine on the fly. For optimal performance, importing data into native BigQuery tables is recommended.
Compute Layer: Powered by Borg and Dremel
BigQuery’s compute layer is where most of the heavy lifting occurs. Managed by Borg, this layer is responsible for provisioning resources to run queries. Borg is Google’s large-scale cluster management system, which handles resource allocation, fault tolerance, and parallel processing.
Once resources are allocated, BigQuery executes queries using Dremel, a distributed system designed to process read-only, nested data at scale. Dremel executes queries by distributing them across a multi-level serving tree. The root of the tree receives the query, and it is passed down to intermediate nodes called Mixers and finally to the Leaf nodes, where the actual data resides.
1. Dremel’s Serving Tree and Query Execution
The multi-level serving tree allows BigQuery to break down SQL queries into smaller, manageable parts that can be processed in parallel. At the root of the tree, the query is broken into sub-queries and sent to mixers, which further break down the tasks and distribute them to the leaf nodes. The leaf nodes then read the data from Colossus, perform filtering, aggregation, and other SQL operations, and pass the results back up the tree for final aggregation.
Each level of the tree applies optimizations, such as query rewriting and filtering, to ensure that data is processed efficiently. By leveraging this tree architecture, BigQuery can achieve extremely fast query performance even on complex queries involving large datasets.
2. Slots and Query Optimization
BigQuery uses slots to manage the compute resources allocated to each query. A slot represents a unit of computational power. The more complex a query, the more slots BigQuery will allocate to it. BigQuery automatically manages the allocation of slots, scaling resources up or down depending on the query’s size and complexity.
Optimizing queries for BigQuery often involves minimizing the amount of data scanned and reducing data shuffling between nodes. Queries that involve operations like JOIN or GROUP BY require data to be moved between nodes, which can slow down performance. To mitigate this, it’s best practice to trim datasets early in the query to reduce the amount of data shuffled.
BigQuery also encourages the use of partitioning and clustering to limit the amount of data scanned by a query. Partitioning tables by date or other columns can significantly reduce query costs and improve performance by focusing the query on a smaller subset of the data.
Networking: The Role of Jupiter
Big data workloads often face bottlenecks in network throughput, but BigQuery is designed to overcome these challenges with Google’s Jupiter network. Jupiter provides 1 Petabit per second of total bisection bandwidth, enabling extremely fast data transfer between storage and compute layers. This high-speed network is critical for BigQuery, especially when dealing with separated storage and compute resources.
Data Model and Schema
BigQuery stores data in a nested and repeated format, which allows for highly flexible and efficient handling of semi-structured data. The schema is organized as a tree, with nodes representing attributes and leaf nodes holding values. This structure is well-suited to complex, hierarchical data models and reduces the need for expensive JOIN operations.
Denormalization is a key best practice when working with BigQuery, as it reduces the amount of data movement required during query execution. By storing related data together in a denormalized format, BigQuery can more efficiently process queries without needing to shuffle large amounts of data between nodes.
SQL Support: Standard and Legacy SQL
BigQuery supports both Standard SQL and Legacy SQL. Standard SQL is compliant with SQL:2011 and is recommended for most use cases due to its broader feature set and better compatibility with other SQL-based systems. Legacy SQL is the original Dremel SQL dialect, but its use is becoming less common as more users adopt Standard SQL for its greater flexibility and functionality.
Both SQL dialects support user-defined functions (UDFs), which allow users to write custom logic that can be executed within queries. UDFs can be used to extend the capabilities of SQL, making BigQuery suitable for more complex analytical workloads.
Alternatives to BigQuery
While there are other data warehouse solutions available, few can match the scale and performance of BigQuery. Competitors include Amazon Athena and open-source tools like Apache Drill and Presto, but these alternatives often require significant infrastructure management and can’t compete with BigQuery’s fully-managed, serverless architecture.
BigQuery’s seamless integration with Google Cloud infrastructure and advanced networking capabilities make it a leading choice for organizations needing to run large-scale data analytics with minimal operational overhead.
Conclusion
Google BigQuery is a highly optimized, fully-managed data warehouse designed to handle large-scale data analytics with unmatched speed and flexibility. Its serverless architecture, powerful compute layer, and integration with Google’s robust infrastructure make it a top-tier solution for querying massive datasets. By understanding BigQuery’s architecture, users can implement best practices to optimize performance, reduce costs, and get the most out of their data.
Whether handling interactive queries, OLAP workloads, or federated data analysis, BigQuery continues to lead in providing scalable, cost-effective solutions for modern data needs.
